Cloth Coating Machine
Uses: cloth after PU, PVC, AC and other oil-based or water-based glue coating on the surface, form the fabric waterproof, crack prevention yarn, waterproof, breathable and flame retardant, can be widely used for umbrellas, tents, handbags, raincoat, windbreaker, snow, and many other leisure activities equipment, household items, but also significantly increase the added value of the fabric.
Product introduction:
First, the basic specification, and machinery
Bolts of cloth warm-up ironing processing
Glue coating machine
Drying oven
Cooling, curled or put off the
Temperature: 60 ℃ -180 ℃
Main power: inverter motor drive system and the constant tension control system
Mechanical speed: the fastest per minute 87M
Uses: cloth after PU, PVC, AC and other oil-based or water-based glue coating on the surface, form the fabric waterproof, crack prevention yarn, waterproof, breathable and flame retardant, can be widely used for umbrellas, tents, handbags, raincoat, windbreaker, snow, and many other leisure activities equipment, household items, but also significantly increase the added value of the fabric.
The type of fabric: plain weave and the type of fabric.
Heating mode of heat sources: steam or hot kerosene
Bolts of cloth warm-up ironing processing
Glue coating machine
Drying oven
Cooling, curled or put off the
Temperature: 60 ℃ -180 ℃
Main power: inverter motor drive system and the constant tension control system
Mechanical speed: the fastest per minute 87M
Uses: cloth after PU, PVC, AC and other oil-based or water-based glue coating on the surface, form the fabric waterproof, crack prevention yarn, waterproof, breathable and flame retardant, can be widely used for umbrellas, tents, handbags, raincoat, windbreaker, snow, and many other leisure activities equipment, household items, but also significantly increase the added value of the fabric.
The type of fabric: plain weave and the type of fabric.
Heating mode of heat sources: steam or hot kerosene
technical parameter:
Two types: scraper
Purposes: the surface of the cloth, PU glue, acrylic plastic, rubber, PVC plastic, colored plastic, water-based glue, waterproof glue, coating processing.
Coating: Viscosity: 2000CPS-50000CPS
Speed :5-100M / min.
Coating weight: 15g / ㎡-100g m
Features: retaining the plastic sheet automatic tracking devices, easy to use, save on labor.
Speed adjustable tension, and six-phase scraping force angle in order to control the coating range.
Can choose from three coating method, coating stability.
New constant tension automatic control, stable and uniform coating weight.
Three warm-up ironing wheels
Fourth, the drying oven
Features: hot air circulation, specially designed nozzle air flow evenly
Can coating weight adjustment fresh with the internal circulating air mixing to ensure that the box safe concentration
Device exhaust air volume control system to maintain the mechanical operation of the security exhaust volume to prevent the oven gas explosion.
Cooling wheel, tank ring
Six out of the cloth material storage device
Coiling rewinding

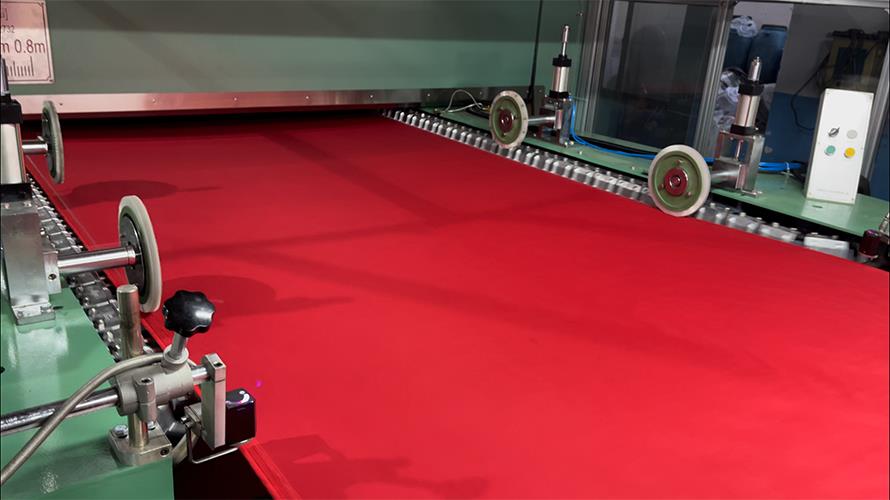

, Coating into the pin tenter device
Purposes: the surface of the cloth, PU glue, acrylic plastic, rubber, PVC plastic, colored plastic, water-based glue, waterproof glue, coating processing.
Coating: Viscosity: 2000CPS-50000CPS
Speed :5-100M / min.
Coating weight: 15g / ㎡-100g m
Features: retaining the plastic sheet automatic tracking devices, easy to use, save on labor.
Speed adjustable tension, and six-phase scraping force angle in order to control the coating range.
Can choose from three coating method, coating stability.
New constant tension automatic control, stable and uniform coating weight.
Three warm-up ironing wheels
Fourth, the drying oven
Features: hot air circulation, specially designed nozzle air flow evenly
Can coating weight adjustment fresh with the internal circulating air mixing to ensure that the box safe concentration
Device exhaust air volume control system to maintain the mechanical operation of the security exhaust volume to prevent the oven gas explosion.
Cooling wheel, tank ring
Six out of the cloth material storage device
Coiling rewinding
, Coating into the pin tenter device

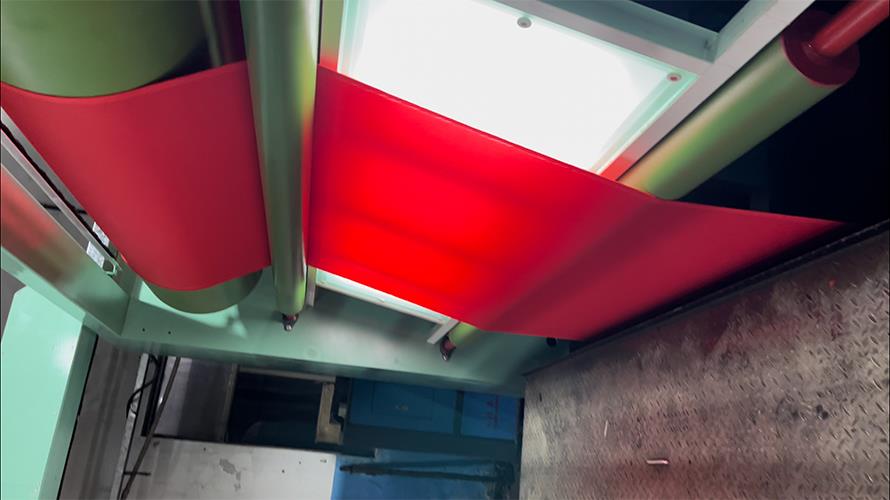

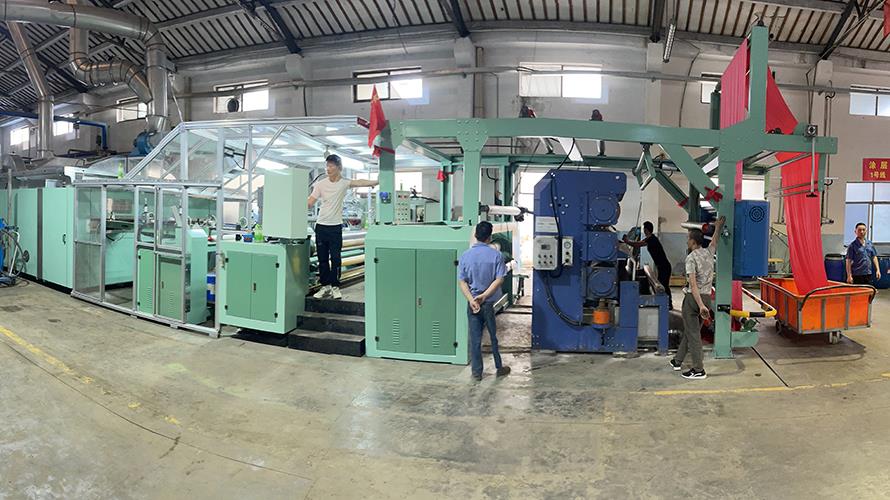

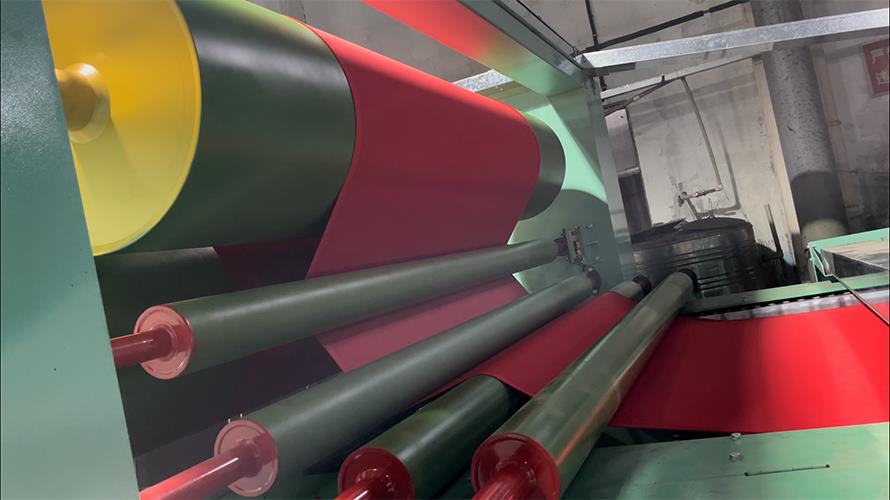

Sample display:

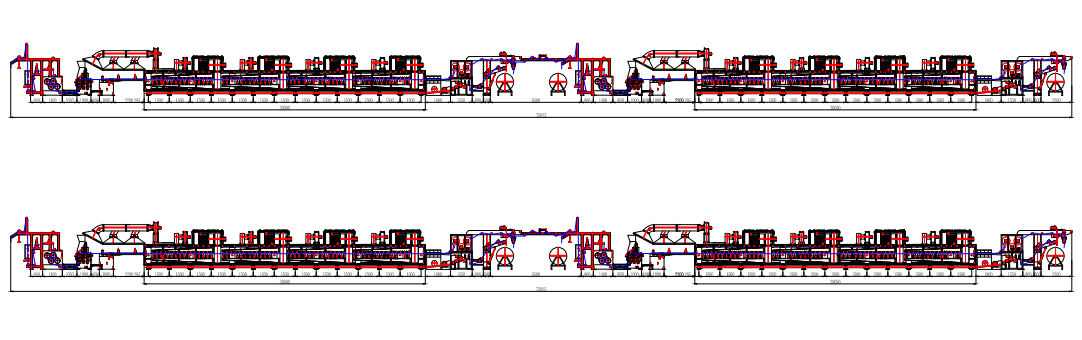

Composition figure
